Integration of SBuild and Microsoft Visual Studio



Back to Command line user
Back to SBuild manual home
Table of content
Overview

Using your SBuild build script, you can generate Visual Studio project files. You can use those project files to fire an SBuild build without leaving Visual Studio or to fire a debugging session. Here is a very short overview:

  • Run build_something.py -M.  That will generate a .vcproj (or a .dsp) and starts Visual Studio with it.
  • Once in the IDE, you edit source files (or build scripts) as you usually do.
  • The shortcut F7 runs SBuild.  F5 starts the debugger.
  • Later on, to start working again, you have the choice between:
    • Double-click the generated project file in File Explorer
    • Start the IDE from an icon and choose in the menu "Recent workspaces"
    • Run again the same script with -M

Important warning: although it is possible to use SBuild through Visual Studio, that is fairly limited. Only the basic functionality is available in this way. For example, most features related to the C pre-processor and to the C parser included in SBuild are not surfaced, the parallel build is not possible, etc. The full power of SBuild is only available through the command line.

Back to top
The msdev action

SBuild implements an action, called msdev, to generate the Microsoft project files. For example, if you do build_something.py -b to build some application, then you use build_something.py action=msdev(...) to generate the project files that will cover the same build. Here are all the possibilities of this action with extensive explanations:

  • action=msdev(init8)
    • Generate a .vcproj file. The file name is computed from the build script name (and the target id, if you provided any). The file is placed in a subdirectory of the SBuild project directory. The directory is created if needed. Note that any existing project with the same name will get overwritten (in fact, clean8 is performed first).
  • action=msdev(init8,...)
    • A richer form of the above. init8 can be followed by a comma-separated list of target platforms to build for. That will add in the generated project some more Project Configurations. More details further below.
  • action=msdev(init)
  • action=msdev(init,...)
    • Same as above but generates a .dsp file. The .dsp files are useful for Visual Studio 6 (but also understood and converted on the fly by more recent versions of Visual Studio).
  • action=msdev(clean8)
    • Removes the .vcproj file generated with init8. Important, it also removes other temporary files that Visual Studio creates in relation to this .vcproj. Note that, since the generated files are in a dedicated subdirectory, it is also possible to clean that directory manually, if desired.
  • action=msdev(clean)
    • Same but it removes the .dsp file and related files
  • action=msdev(start8)
    • Attempts to start Visual Studio 2005 on your machine. But first it looks for a generated project corresponding to this build. If it doesn't find any, it performs init8 then it starts Visual Studio. If it find one, no matter how old, it only starts Visual Studio with it. SBuild tries first Visual Studio Express and then Visual Studio full.
  • action=msdev(start)
    • Same as above but starts Visual Studio 6
  • action=msdev() and -M
    • This scans the registry of your machine looking for versions of Visual Studio. If 2005 is found then it performs start8, otherwise it performs start
    • -M is a strict equivalent of action=msdev()

Note that -M, start8 and start are only provided for convenience. If ever the scanning of the registry fails, or starting the IDE fails, you can always and reliably use the init8 and init and then click on the generated files. init8 and init will generate the Microsoft project files even if no Visual Studio at all is installed on your machine.

The generated project files have been tested with Visual Studio 2005 and with Visual Studio 6. They also work with Visual Studio 2008, although SBuild is not yet able to start it automatically.

Back to top

Inside the IDE

Once you have the IDE started, you will notice a number of Visual Studio Project Configurations larger than what you use to have (you are likely used to see two of them, called "Debug" and "Release"). Now you will see 6 or more. The reason is that, within the IDE, you always start SBuild in the same way: by starting a build (shortcut F7). So you choose one Project Configuration to decide what SBuild will do for you. Here are the 6 configurations that SBuild puts in the generated .vcproj (the actual names are longer, this simplification for easier understanding):

  • List
    • List the .c sources and the .h headers in the Output pane. Double click a file name to open file in editor. This is the same as passing action=preproc(vssrcs) to a build script
  • Header tree
    • Shows a tree of .h inclusion. What files includes what exactly, with full absolute paths names. Same as passing action=preproc(tree)
  • dbg Build
    • Performs a build with F7. Same as -b bldopt=dbg. But it can be also the same as -B bldopt=dbg if you chose in the menu to do a full rebuild (Ctrl-Alt-F7 in Visual Studio 2005) or the same as -c bldopt=dbg  if you choose to clean up.
  • dbg Run
    • Same as -R bldopt=dbg. You must have built first. How to write build scripts so that targets are run by SBuild is explained elsewhere.
  • rls Build
  • rls Run
    • Same as above but with bldopt=rls instead of bldopt=dbg, meaning for a release build.

The first 2 configurations are independent of the target platform that you build for. By contrast, the last configurations are dependent and they are duplicated for every target platform you specified to init8 or init. More precisely, they are duplicated for each and every pair of <tgtplatform>:<toolchain>. See also explanation further below.

Take note that, among the configurations listed above, it only makes sense to hit F5 (to start a debugging session) for 2 configurations:

  • dbg Build
  • rls Build

Other details:

  • A project file is always generated in the same place, so you can easily place a shortcut on your desktop for it
  • In order to make it work also with Visual Studio 6 and 7, among other reasons, the field "Platform" that is available in Visual Studio 2005 and later is not used. That one will always show "Win32".

Back to top
Screen snapshots

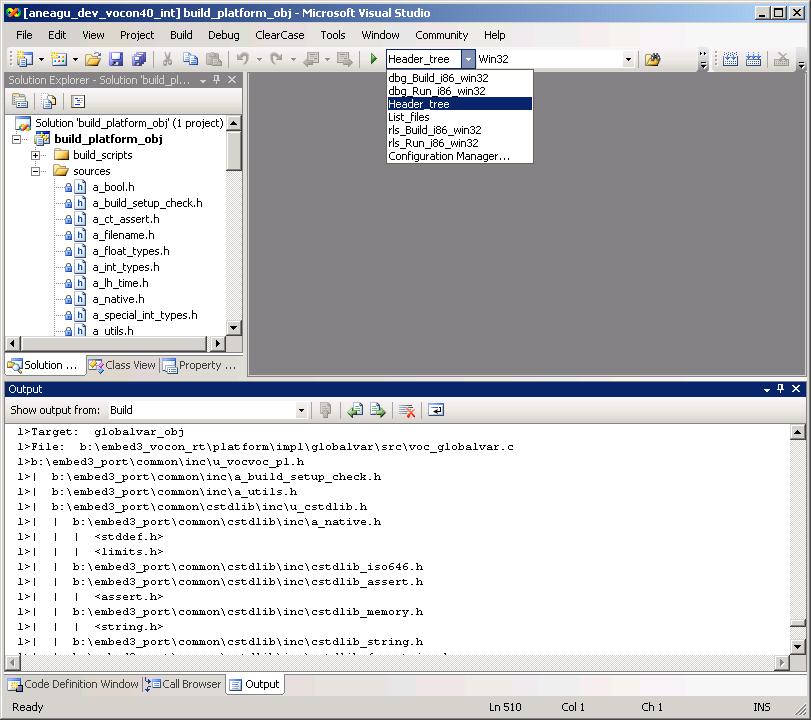

Visual Studio 2005 with generated .vcproj opened. Note the sources in the left pane. Note the drop down list of Project configurations. Note the output in the lower pane showing the header inclusion tree.

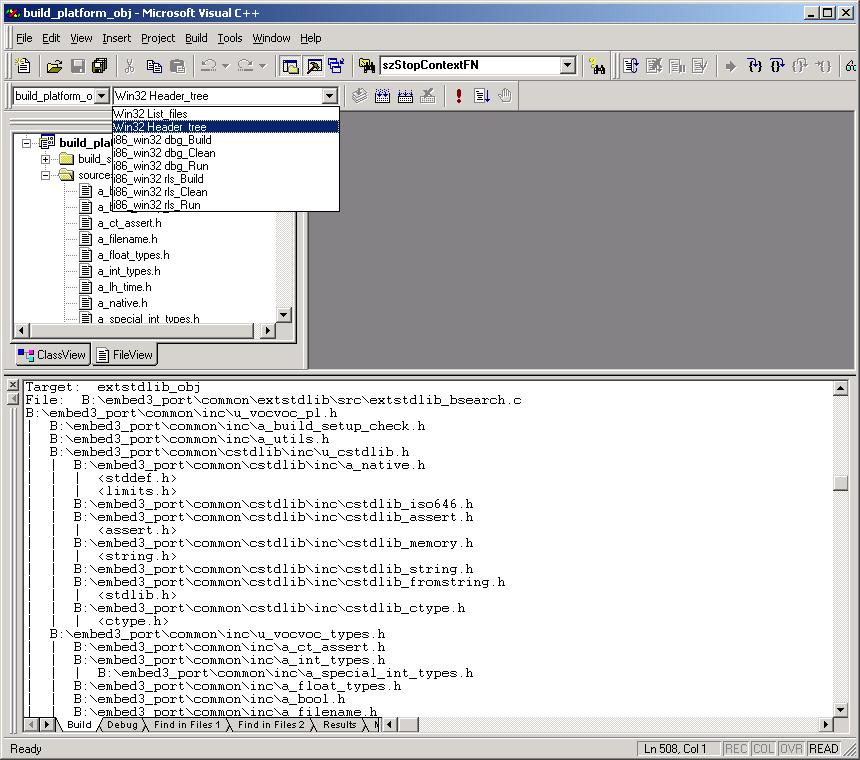

Visual Studio 6 with generated .dsp opened. Note the sources in the left pane. Note the drop down list of Project configurations. Note the output in the lower pane showing the header inclusion tree.
